Q23：What is the difference between Diplexer and Duplexer?
Diplexer and Duplexer are both three-port radio frequency devices.

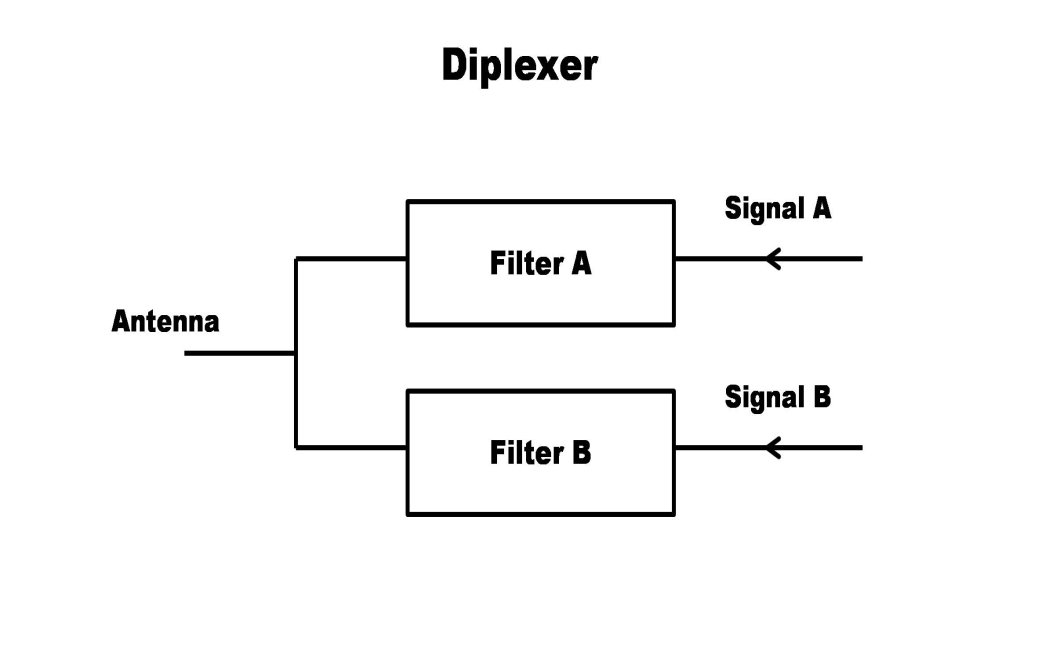

Diplexer is used with filters Frequency separates the signal. It allows two different devices to share a common communication channel. It consists of two filters (Low Pass, High Pass or Band Pass) at different frequencies connected to a single antenna.
Duplexer is used to separate the transmission and reception paths according to the signal direction. It can be used for same-frequency signals. In a duplexer there is no direct path between the transmitter and receiver. It can be thought of as a circulator i.e the signal from port 1 is routed to port 2 and the signal from port 2 is routed to port 3. Port 1 and Port 3 are isolated from each other.
Our Duplexer and Diplexer have the following special features, you could indicate as your design.
--3 packages type: Connector, Surface Mount Design and Thru-hole
--Frequency: DC to 60 GHz
--Technology: Cavity, Waveguide, LC, DR (dielectric), Ceramic and Helical
--Low Power & High Power up to 200W (avg)
--Indoor & Outdoor (waterproof IP65, IP66, IP67) application
--Narrow bandwidth & Broadband
TEMSTRON from Temwell group supports Duplexer/ Diplexer with high quality custom service and technical information in Frequency band: DC to 60GHz, Isolation: up to 60dB+, and Power: 100W+, including VHF UHF Duplexer, VHF UHF Diplexer, TETRA Cavity Duplexer, Helix Cavity Diplexer, LTE Low PIM Diplexer, and Coaxial Duplexer. Our R&D team is your best source for operating your RF project. Contact us for free consultant service online. New proposal in 7 workdays.

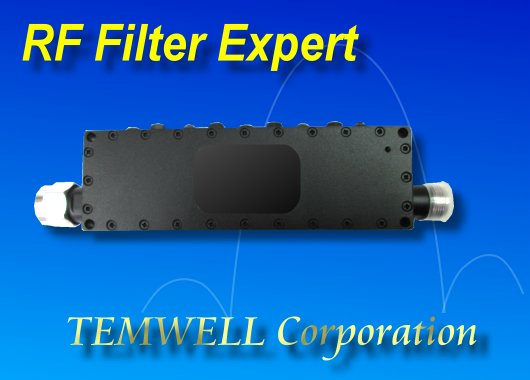

TEMWELL as RF Filter Expert established one-stop service in 5G RF Cavity Filter, supplying High quality specification value and large power requirement solutions. such as Bandpass 5G Cavity Filter, 5G Cavity Notch Filter, 5G Highpass Cavity Filter, 5G Lowpass Cavity Filter, Suspended stripline Filter, Interdigital Filter and LC Filter. Also, providing custom service in Frequency band: DC to 60GHz and Bandwidth: 1MHz to 40GHz. If you are interested, click to see more information.
Temwell group as one of the best suppliers of RF and microwave components solutions supports the most comprehensive RF O-RAN standard support for 5g design solutions in time. With a highly efficient R&D team and highly flexible design energy, we provide custom design proposals to match the O-RAN standard requirement with Helical Filter Design, Cavity Filter Design, SMD Filter, Needle Filter, Coil and Inductor, RF Diplexer Design, RF Duplexer Design, n-way Combiner and all kinds of RF components. Click for more detail information or Contact for free consultant service now.
Temwell R&D Team with the high flexible capability to provide customer service in high-performance LNA and high attenuation RF Filter for high-performance RADAR projects. We provide custom design proposals, including Helical Bandpass Filter, RF Cavity Filter, SMD Filter, Needle Filter, SMD Inductor, SMD Coil, Diplexer Duplexer, N-Way Combiner, and all kinds of RF components. Free to contact for free consultant service. New proposal will be ready in 7 days.
