The basic value of RF Filter: Center Frequency

In RF communications and high-frequency electronics applications, RF filters are critical components for maintaining signal quality and system stability. Center frequency is a key parameter that most closely reflects filter performance. Temwell Group will provide an in-depth understanding of the definition, characteristics, and interpretation of center frequency, as well as how we can leverage our expertise to help customers create optimal filtering solutions.

Definition of Center Frequency: The Core Reference Point of RF Filter

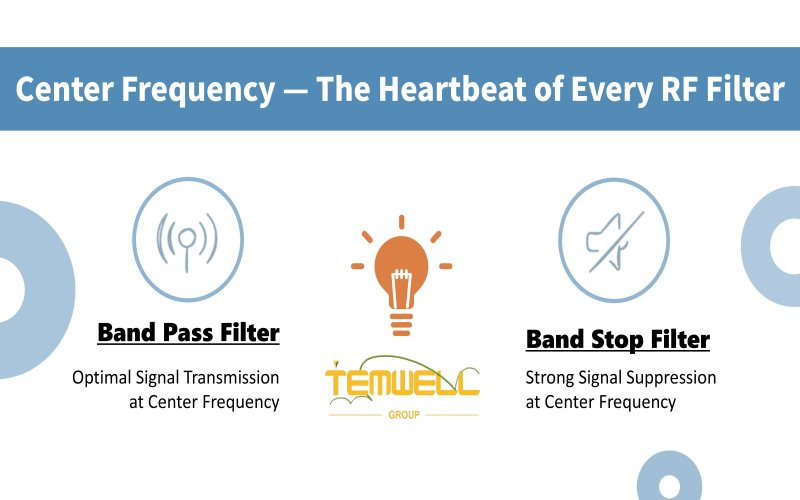

The center frequency (marked as fc or f0) is the position in the filter passband where the signal passing rate is the highest or the frequency response curve is the most centrally symmetrical. In a bandpass filter, the center frequency typically refers to the center of the frequency band covered. This is calculated by subtracting the highest and lowest frequencies from the desired frequency band, dividing by two, and adding the lowest frequency. This frequency represents the frequency point at which the filter is intended to pass signals in a communications system. The filter's performance is to ensure that signals pass smoothly at the center frequency, regardless of the conditions.

However, in a bandstop filter, the center frequency has the opposite meaning, representing the frequency position where the filter has the strongest suppression effect. In other words, no matter what the situation, the signal must be at the center frequency position, and it will not be affected.

 In short, the center frequency is the "origin" of filter design, and all other performance characteristics such as bandwidth, insertion loss, and return loss are developed and designed based on it.

Center Frequency Characteristics and Their Impact on RF Filter Design

Center frequency (Fc) is one of the most critical parameters in RF filter design. It represents the center point of the filter's passband and is the position where signal loss is minimal and transmission efficiency is highest. The accuracy and stability of the center frequency directly affect the system's communication quality and spectrum configuration. If the center frequency shifts, it may cause signal attenuation, passband mismatch, or even adjacent channel interference, affecting the overall system performance.

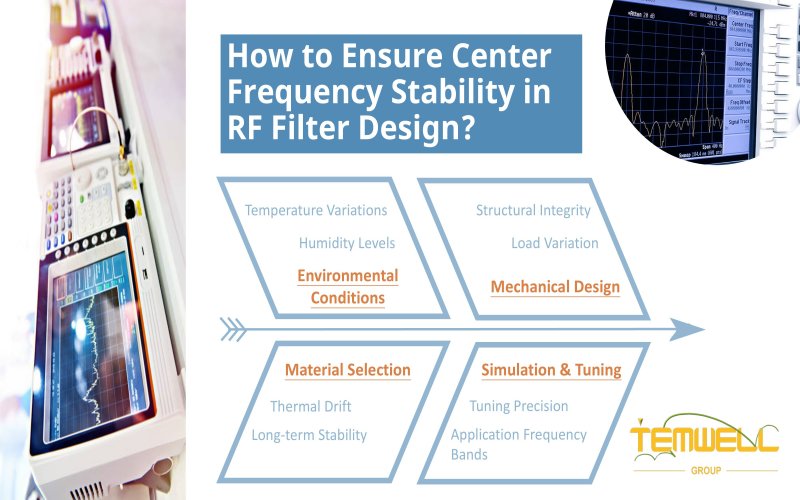

During product development, engineers perform precise simulations and tuning based on the application frequency band (such as VHF, UHF, L, S, C, or X Band) and environmental conditions (such as temperature, humidity, and load variations) to ensure stable center frequency without drift. Furthermore, material selection and structural design minimize temperature drift, ensuring the filter maintains high reliability over long-term operation.

Different communication devices or modules often require specific dimensions to optimize the internal circuit board design space. Customized Filter Service can redesign the cavity or resonant structure to meet specific length, width, and height requirements, achieving miniaturization and light weighting while maintaining the required filtering characteristics and reliability. This flexible design allows the filter to seamlessly integrate into various system architectures.

The key to determining the quality of a filter's center frequency lies in its accuracy and stability. If the measured center frequency is within ±0.2% of the designed value and remains stable under varying temperature conditions, the filter is considered high quality. A stable center frequency not only improves communication performance but is also crucial for ensuring system consistency and signal integrity.

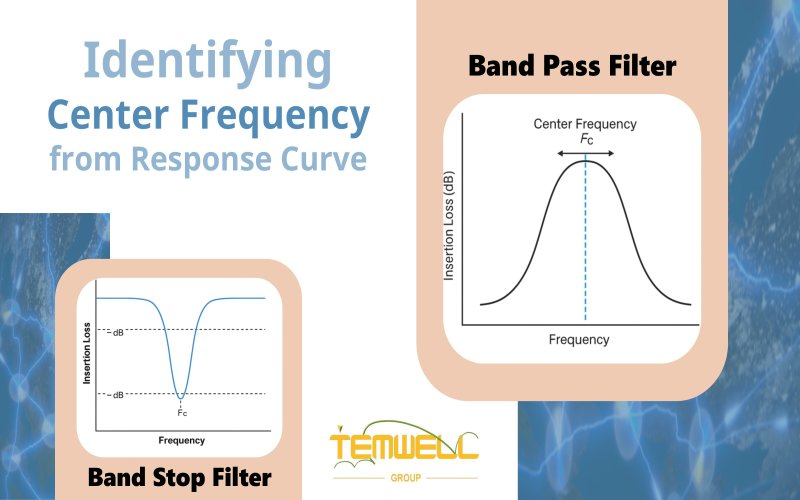

How to Determine the Center Frequency of an RF Filter from Its Frequency Response Curve

When understanding the basic values ​​of an RF filter, the most direct and effective tool is to look at the frequency response curve. The following explains how to determine the center frequency from the frequency response curve:

a. Bandpass filter (BPF):

The center frequency is located at the "minimum insertion loss point" of the passband curve. On a frequency response curve, the center frequency (Fc) is located exactly in the middle of the passband, where the insertion loss is lowest. To interpret the frequency response, first find the frequency corresponding to the lowest point on the curve; this is the center frequency. For bandpass filters, the midpoint of the line connecting the -1/-3 dB points on the left and right sides can also be used as the coordinate point of Fc.

b. Band stop filter (BSF or Notch Filter):

The center frequency is located at the "maximum suppression point" of the curve. To determine the center frequency (Fc) of a band-stop filter (BSF/Notch Filter), look for the point on the curve where the insertion loss is highest, which is also the frequency at which the signal is most suppressed. The frequency corresponding to the lowest point of the curve dip is Fc. For greater accuracy, use the midpoint between the -1/-3 dB points on either side as the center frequency; this value represents the center of the filter's stopband.

Temwell Group’s Professional RF Filter Capabilities and Comprehensive Services

Temwell Group has long been focused on the research and development, design and production of RF filters and microwave components, providing complete technical support from concept to mass production.

🌐 Our Core Strengths:

• Comprehensive product spec sheet and simulation data:

Reporting precise parameters such as center frequency, bandwidth, insertion loss, and return loss, etc.

• High-precision measurement equipment:

Using professional-grade network analyzers to ensure that the RF filter is accurately verified.

• Rigorous reliability testing:

All products can provide temperature, vibration and stability tests according to customer requirements.

•Integrated technical consulting:

Evaluating the most suitable RF Filter solutions based on specific application conditions, space constraints, and environmental requirements.

• Turnkey service:

Temwell provides a comprehensive service from technical solution evaluation, design advice, prototyping, and subsequent product manufacturing, helping customers achieve optimized RF solutions in the shortest possible time.

Conclusion: Accurate Center Frequency Enables Efficient RF Systems

RF Filter Basic Parameters Analysis: Center frequency is not only the core of filter design but also crucial to the stability and performance of the entire RF system. Temwell Group uses its professional design experience, precise measurement technology and integrated services to help customers create high-performance and reliable filters and microwave components. Upholding the tradition of "Made in Taiwan, Taiwan Quality," we are committed to providing high-quality products that meet international standards. We look forward to becoming your long-term partner in the RF and microwave fields.
