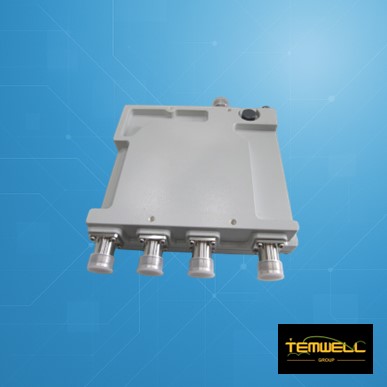

Standard RF Combiner-4 Band
Description
Temwell Group provides standard RF Combiner products to support multi-band integration needs, covering 2-band, 3-band, 4-band to 5-band application designs. This series of products can support a wide frequency range from 600MHz to 5GHz, meeting the high-efficiency requirements of multi-frequency coexistence and resource integration in modern wireless communication systems. Each combiner has excellent high isolation performance, which can effectively prevent mutual interference and crosstalk between different frequency bands, ensuring that each channel maintains clear and stable signal quality after integration. Widely used in base stations, multi-band antenna modules, indoor distribution systems (DAS), test equipment and multi-standard wireless systems.
Specification Range
- Pass Frequency band: VHF/ UHF/ Single band/ Dual Band/ Multi Band
- Input/output: 2 band in 1 / 3 band in 1 /4 band in 1 / 5 band in 1 /
- Power: 5-200W
- Connector: SMA, F, N, others
- Impedance: 50 /75 ohm
Series Feature
All standard items are mature models with completed designs. Orders can be placed at any time and put into production quickly. The average delivery time is only 7 to 14 days, which greatly improves project development efficiency and procurement convenience. The product also supports a variety of connector support, making it easier to integrate into different system architectures and enhancing the flexibility of practical use.
Application
Telecommunication products,
Satellite
RADAR
Base Station
Mining communication
Aviation communication
Custom Service
If the existing products do not fully meet your frequency configuration, power requirements or organizational restrictions, Temwell's professional R&D team can also provide customized design solutions based on actual application conditions to help you accurately integrate multi-frequency systems and create optimized communication performance. Contact Temwell today to discuss your custom RF Combiner requirements and get expert support tailored to your application.
| # | Part Number | TYPE | Ways | Frequency band (MHz) |
Bandwidth (MHz) |
IL (dB) |
RL (dB) |
Attenuation value (dB) |
POWER (W) |
Connect method | Order |
| 1 | STQBC-380-2700-H30 | Quad band Combiner | 4 in 1 out | Port1: 380-960 MHz Port2: 1710-1880 MHz Port3: 1920-2170 MHz Port4: 2300-2700 MHz |
Port1: 580MHz Port2: 170MHz Port3: 250MHz Port4: 400MHz |
Port1: 0.3dB Port2: 0.5dB Port3: 0.5dB Port4: 0.5dB |
19 | Port1: 50db@1710-1880 MHz, @1920-2170 MHz, @2300-2700 MHz Port2: 50db@380-960 MHzM, @1920-2170 MHz, @2300-2700 MHz Port3: 50db@380-960 MHz, @1710-1880 MHz,@2300-2700 MHz Port4: 50db@380-960 MHz, @1710-1880 MHz,@1920-2170 MHz |
250W | 4.3-10 Female | link |
| 2 | STQBC-1710-2700-H15 | Quad band Combiner | 4 in 1 out | Port1: 1710-1880 MHz Port2: 1920-2170 MHz Port3: 2300-2400 MHz Port4: 2500-2700 MHz |
Port1: 170MHz Port2: 250MHz Port3: 100MHz Port4: 200MHz |
Port1: 0.4dB Port2: 0.4dB Port3: 0.4dB Port4: 0.4dB |
20 | Port1: 50db@1920-2170 MHz, @2300-2400 MHz, @ 2500-2700 MHz Port2: 50db@1710-1880 MHz, @2300-2400 MHz, @2500-2700 MHz Port3: 50db@1710-1880 MHz, @1920-2170 MHz,@2500-2700 MHz Port4: 50db@1710-1880 MHz, @1920-2170 MHz,@2300-2400 MHz |
250W | 4.3-10 Female | link |
