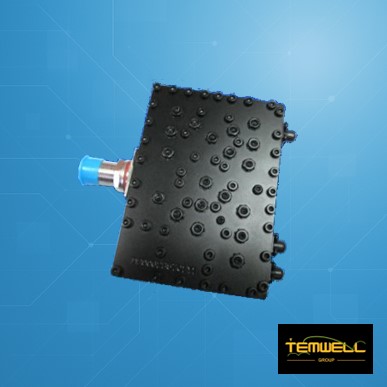

Standard RF Combiner-3 Band
Description
Temwell Group provides standard RF Combiner products to support multi-band integration needs, covering 2-band, 3-band, 4-band to 5-band application designs. This series of products can support a wide frequency range from 600MHz to 5GHz, meeting the high-efficiency requirements of multi-frequency coexistence and resource integration in modern wireless communication systems. Each combiner has excellent high isolation performance, which can effectively prevent mutual interference and crosstalk between different frequency bands, ensuring that each channel maintains clear and stable signal quality after integration. Widely used in base stations, multi-band antenna modules, indoor distribution systems (DAS), test equipment and multi-standard wireless systems.
Specification Range
- Pass Frequency band: VHF/ UHF/ Single band/ Dual Band/ Multi Band
- Input/output: 2 band in 1 / 3 band in 1 /4 band in 1 / 5 band in 1 /
- Power: 5-200W
- Connector: SMA, F, N, others
- Impedance: 50 /75 ohm
Series Feature
All standard items are mature models with completed designs. Orders can be placed at any time and put into production quickly. The average delivery time is only 7 to 14 days, which greatly improves project development efficiency and procurement convenience. The product also supports a variety of connector support, making it easier to integrate into different system architectures and enhancing the flexibility of practical use.
Application
Telecommunication products,
Satellite
RADAR
Base Station
Mining communication
Aviation communication
Custom Service
If the existing products do not fully meet your frequency configuration, power requirements or organizational restrictions, Temwell's professional R&D team can also provide customized design solutions based on actual application conditions to help you accurately integrate multi-frequency systems and create optimized communication performance. Contact Temwell today to discuss your custom RF Combiner requirements and get expert support tailored to your application.
| # | Part Number | TYPE | Ways | Frequency band (MHz) |
Bandwidth (MHz) |
IL (dB) |
RL (dB) |
Attenuation value (dB) |
POWER (W) |
Connect method | Order |
| 1 | STTBC-380-2700-H07-S | Triple band Combiner | 3 in 1 out | Port1: 380-960 MHz Port2: 1695-2200 MHz Port3: 2300-2700 MHz |
Port1: 580MHz Port2: 305MHz Port3: 400MHz |
Port1: 0.2dB Port2: 0.35dB Port3: 0.35dB |
20 | Port1: 50db@1695-2200 MHz, @2300-2700 MHz Port2: 50db@380-960 MHz, @2300-2700 MHz Port3: 50db@380-960 MHz,@1695-2200 MHz |
250W | 4.3-10 Female | link |
| 2 | STTBC-380-2200-H27-S | Triple band Combiner | 3 in 1 out | Port1: 380-960 MHz Port2: 1695-1880 MHz Port3: 1920-2200 MHz |
Port1: 580MHz Port2: 185MHz Port3: 280MHz |
Port1: 0.2dB Port2: 0.3dB Port3: 0.3dB |
20 | Port1: 50db@1695-1880 MHz, @1920-2200 MHz Port2: 50db@380-960 MHz, @1920-2200 MHz Port3: 50db@380-960 MHz,@ 1695-1880 MHz |
250W | 4.3-10 Female | link |
| 3 | STTBC-1710-2690-H31 | Triple band Combiner | 3 in 1 out | Port1: 1710-1880 MHz Port2: 1920-2170 MHz Port3: 2300-2690 MHz |
Port1: 170MHz Port2: 250MHz Port3: 390MHz |
Port1: 0.3dB Port2: 0.3dB Port3: 0.3dB |
19 | Port1: 50db@1920-2170 MHz, @2300-2690 MHz Port2: 50db@1710-1880 MHz, @2300-2690 MHz Port3: 50db@1710-1880 MHz,@1920-2170 MHz |
250W | 4.3-10 Female | link |
| 4 | STTBC-698-3800-H21 | Triple band Combiner | 3 in 1 out | Port1: 698-960 MHz Port2: 2300-2700 MHz Port3: 3300-3800 MHz |
Port1: 262MHz Port2: 400MHz Port3: 500MHz |
Port1: 0.4dB Port2: 0.4dB Port3: 0.4dB |
19 | Port1: 50db@2300-2700 MHz, @3300-3800 MHz Port2: 50db@698-960 MHz, @ 3300-3800 MHz Port3: 50db@698-960 MHz,@2300-2700 MHz |
250W | 4.3-10 Female | link |
