Alternative SMD Variable Coils- 5CCE Series
Description

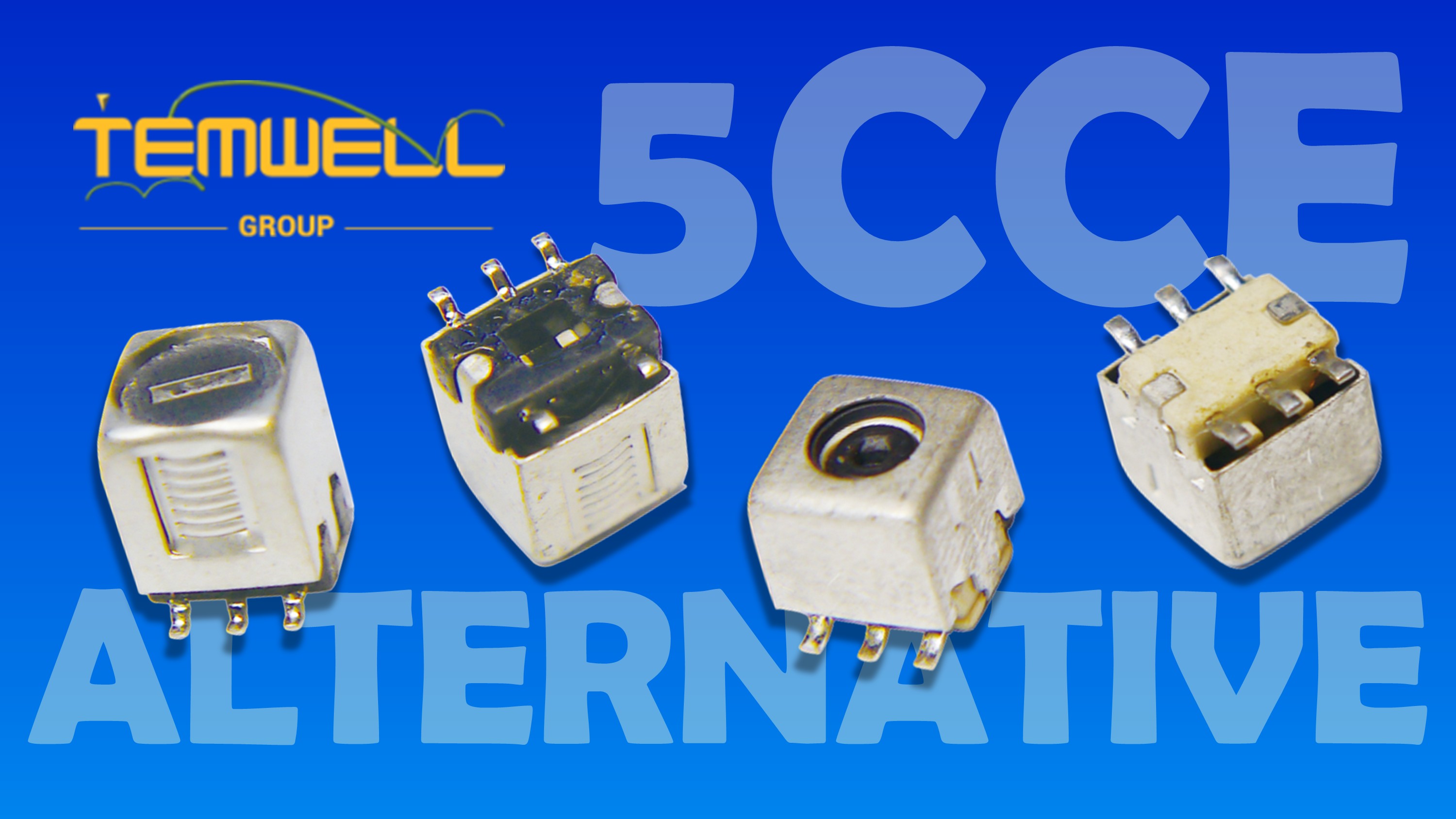

Temwell Group offers the 5CCE Series SMD Variable Coils, specifically developed to replace TOKO discontinued SMD inductor series, helping customers address component shortages and supply disruptions caused by the manufacturer's discontinuation. This series is based on original TOKO inductor specifications, providing corresponding alternatives for key parameters such as inductance, Q factor, self-resonant frequency (SRF), DC resistance (DCR), and package size, meeting the performance and compatibility requirements of existing circuits.The 5CCE Series particularly emphasizes specification matching and pin-to-pin replacement capabilities with original TOKO products, helping customers reduce the time and cost of redesign, testing, and product verification while maintaining their original PCB layout and circuit design as much as possible.
Specification Range
- *Frequency range: 10-150Hz
- *Inductance range:0.05-2.7uH
- *Q approx: 70 (at100MHz)
Series Feature
All standard product lines are mature, pre-designed models that can be ordered immediately and put into production quickly, with an average lead time of 14 days, significantly improving project development efficiency and procurement convenience.
Custom Service
If you cannot find the ideal product specifications among existing standard products, Temwell's professional technical team can also provide a matching solution tailored to your application needs, fully supporting your product development and performance optimization from key parameters such as inductance, Q factor, self-resonant frequency (SRF), DC resistance (DCR) and package size. Contact Temwell today to discuss your custom coil requirements and get expert support tailored to your application.
| # | Part Number | Inductor TYPE |
Inductance L |
Adjustable Range (+/-%) |
Q | Test Frequency (MHz) |
Connect method | Order |
| 1 | TS-A638AN-0150Z | 5CCE | 68 | +/-5% | 60+/-20% | 0.15 | SMD | link |
| 2 | TS-A638AN-0151Z | 5CCE | 82 | +/-5% | 63+/-20% | 0.29 | SMD | link |
| 3 | TS-A638AN-0152Z | 5CCE | 100 | +/-5% | 65+/-20% | 0.18 | SMD | link |
