TDR2634A-420M Helical Tunable Bandpass Filter

TDR2634A-420M

Product Description

Item Specify
Reference Parts TDR2634A-420M
Acceptable 401~450M
Product Series 5R2
Stock Quantity 0

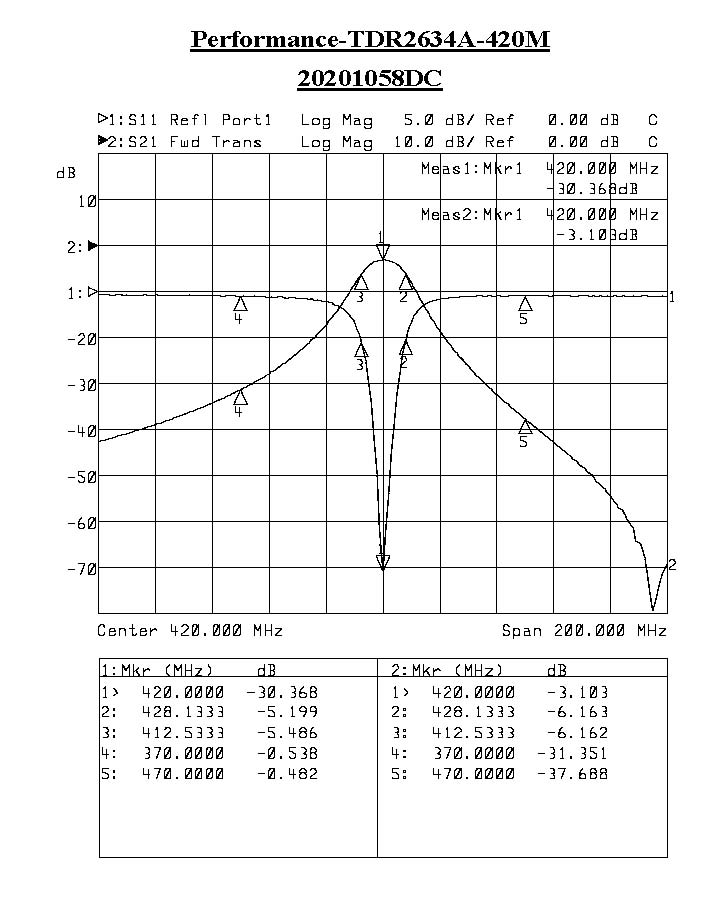

Detail Electronic Characteristic

Item Specify
Center Frequency 420M
Insertion Loss 4
-3 dB Bandwidth 11M
Sensitivity
(Attenuation)
F0-(50)Mhz 25
F0+(50)Mhz 32
Return Loss
Impedence In / Out :50 Ω
Ripple

Temperature Condition

Item Specify
Operating Temperature 0C ~60C
Storage Temperature -20C ~ +70C

Mechanical Condtion

Item Specify
Size Diagram 11.2 X 5.6
Height 8.6mm
Input Power 1~5W
