TTL63258F-199.25M Helical Tunable Bandpass Filter

TTL63258F-199.25M

Product Description

Item Specify
Reference Parts TTL63258F-199.25M
Acceptable 196～220M
Product Series 7H3L
Stock Quantity 0

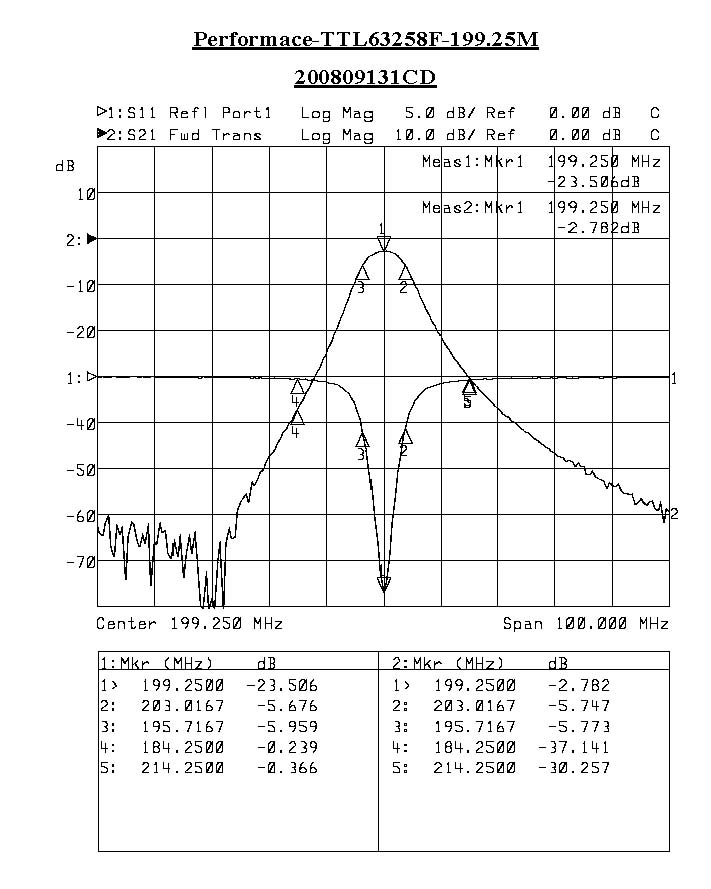

Detail Electronic Characteristic

Item Specify
Center Frequency 199.25M
Insertion Loss 4
-3 dB Bandwidth 6M
Sensitivity
(Attenuation)		 F0-(15)Mhz 32
F0+(15)Mhz 25
Return Loss > 12 dB
Impedence In / Out :75 Ω
Ripple < 1 dB

Temperature Condition

Item Specify
Operating Temperature 0C ~60C
Storage Temperature -20C ~ +70C

Mechanical Condtion

Item Specify
Size Diagram 22.8 X 7.6
Height 12.5mm
Input Power 1~5W
