TTL6786B-171.5M Helical Tunable Bandpass Filter

TTL6786B-171.5M

Product Description

Item Specify
Reference Parts TTL6786B-171.5M
Acceptable 166~195M
Product Series 7H3L
Stock Quantity 0

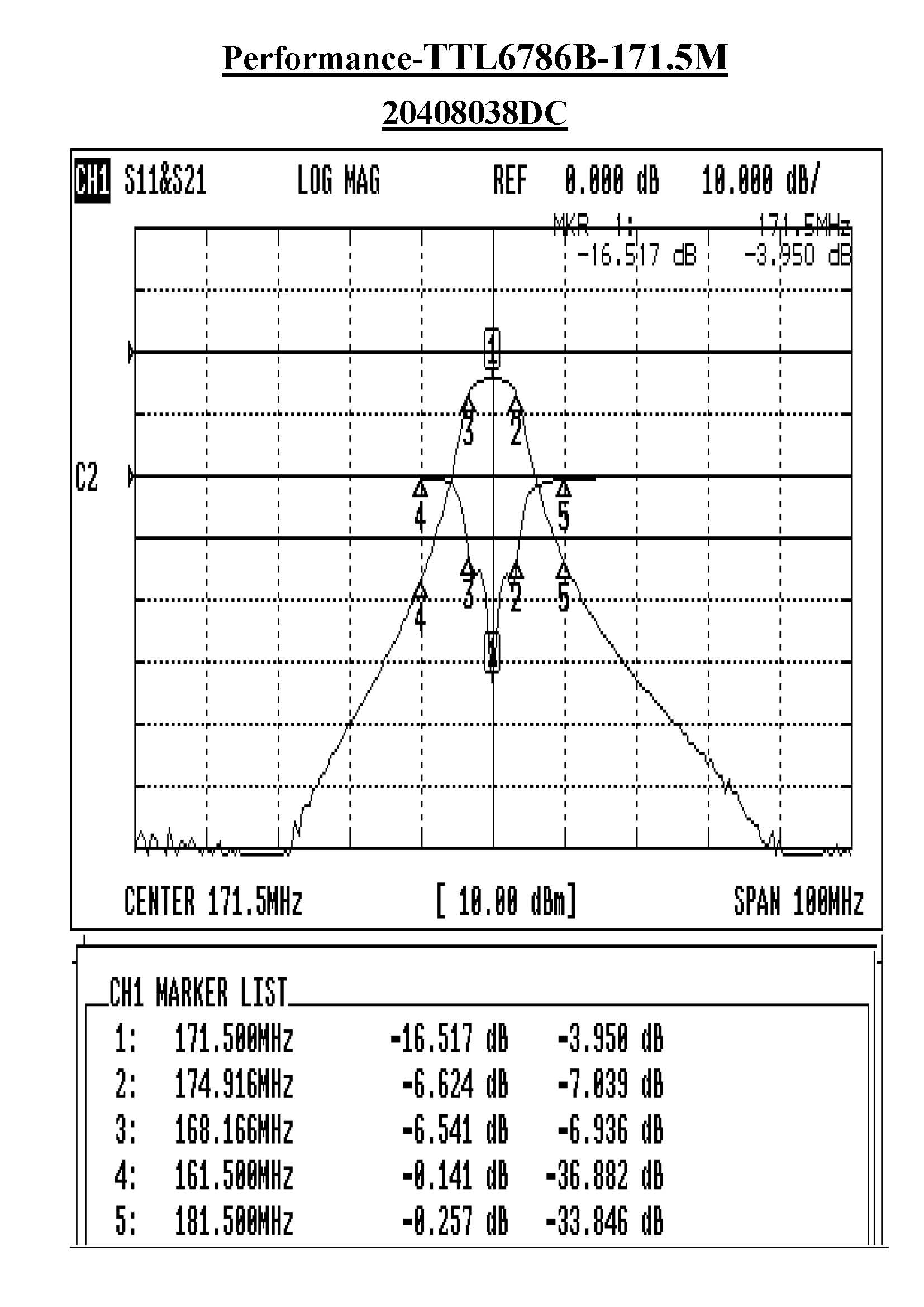

Detail Electronic Characteristic

Item Specify
Center Frequency 171.5M
Insertion Loss 5
-3 dB Bandwidth 5M
Sensitivity
(Attenuation)
F0-(10)Mhz 30
F0+(10)Mhz 27
Return Loss > 12 dB
Impedence In / Out :75 Ω
Ripple < 1 dB

Temperature Condition

Item Specify
Operating Temperature 0C ~60C
Storage Temperature -20C ~ +70C

Mechanical Condtion

Item Specify
Size Diagram 22.8 X 7.6
Height 12.5mm
Input Power 1~5W
